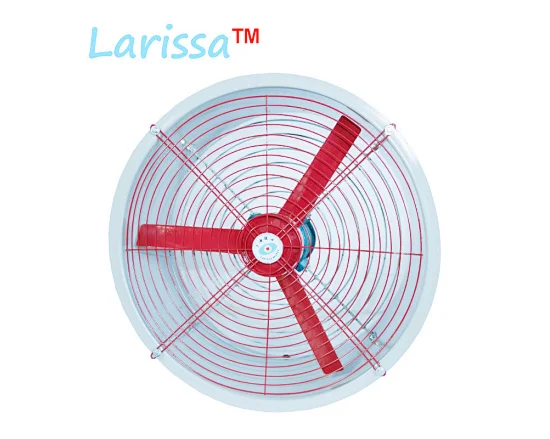

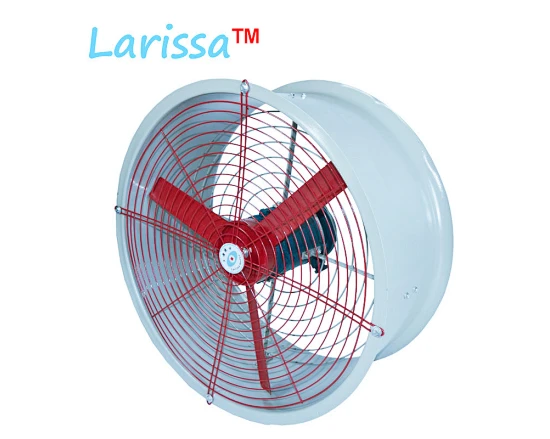

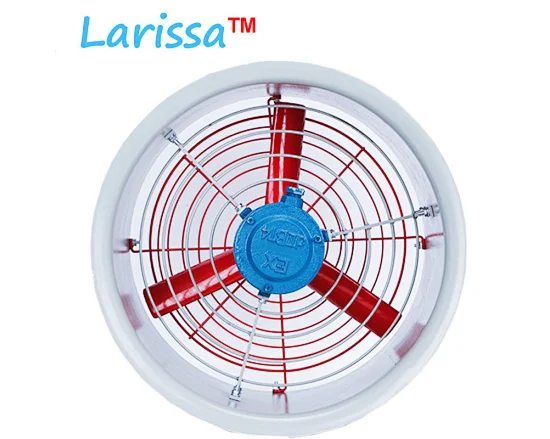

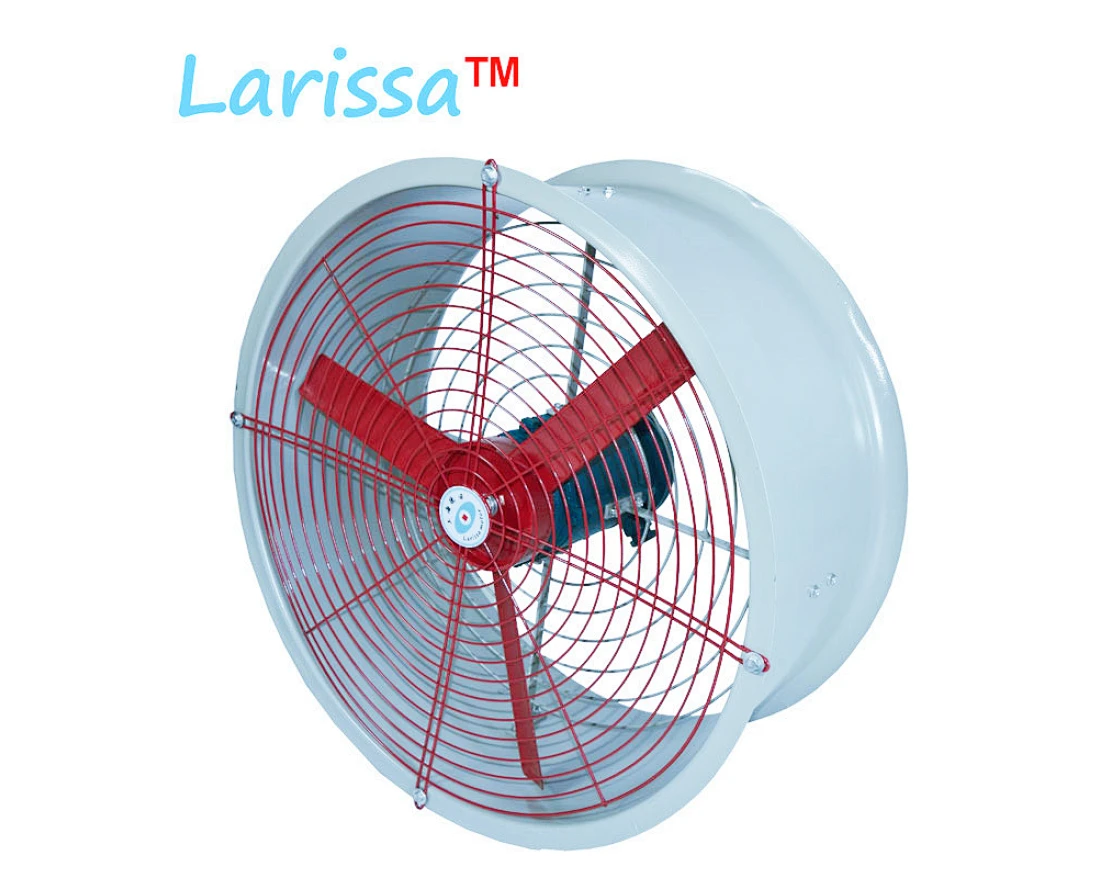

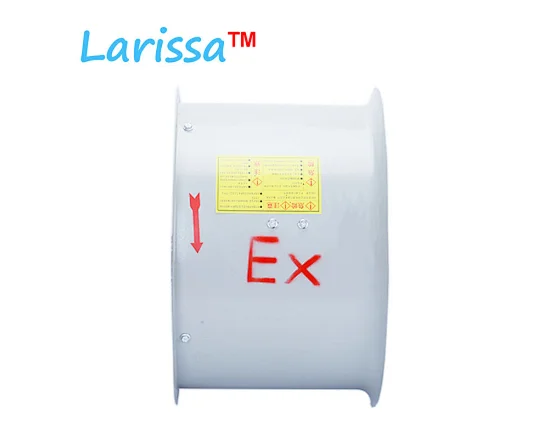

ECPLOSION-PROOF AXIAL FAN
It is suitable for conveying flammable, explosive and non-corrosive gas. The ambient temperature should not exceed 60℃. It is widely used in general factories, warehouses, offices, residential ventilation or strong heating, and can also be used in long exhaust pipes. Install in series at intervals to increase the pressure in the pipe.
CBF
FOB
1 piece
1000piece / Week
Taizhou Zhejiang
3Day
Quantity:
US $17.00 - US $80.00

Quick Details

Type: Axial Flow Fan

Mounting: Duct Fan

Blade Material: aluminum

Place of Origin: Zhejiang, China

Brand Name: DEJIU

Warranty:1 Year

After-sales Service Provided: Online support, Overseas third-party support available

Product name: CBF type explosion proof 600mm axial fan

Color: customized

Supply Ability

Supply Ability: 5000 Set/Sets per Month for CBF type explosion proof 600mm axial fan

Packaging & Delivery

Packaging Details one set per carton box for CBF type explosion proof 600mm axial fan

Port Ningbo/Shanghai

Product Description

CBF Explosion Proof Mining Fan

1,Ex-mark:Exd II BT4

2,Rated voltage:AC220V/380V

3,Wind cylinder :Superior quality steel plate

CBF Explosion Proof Mining Fan :

1, Designed for Explosive atmosphere Zone 1, Zone 2

2, Designed for Groups IIA, IIB, IIC, Temperature classes T1~T4

3, Designed for sites with explosive atmosphere, such as petroleum exploitation, refinery, storage, chemistry, medicine, military facilities, etc.

CBF Explosion Proof Mining Fan:

1, Explosion proof axial flow fan is composed of explosion proof motor, fan blade, wind cylinder, etc.

2, Wind cylinder is welded of superior quality steel plate, die casted fan of aluminum alloy with high pressure electrostatic plastic-sprayed surface.

3, Mounting mode has four ways can be chosen: Bracket type, pipe type, post type, fixed type.

4, Steel pipe wiring and cable wiring.

Technology Parameters

Model No.

Impeller dia(mm)

Wind

(m³/h)

Power (W)

Main-role rotary No. (r/min)

CBF-300

300

2280

180

1450

CBF-400

400

2880

370

1450

CBF-500

500

5700

550

1450

CBF-600

600

8700

750

1450
