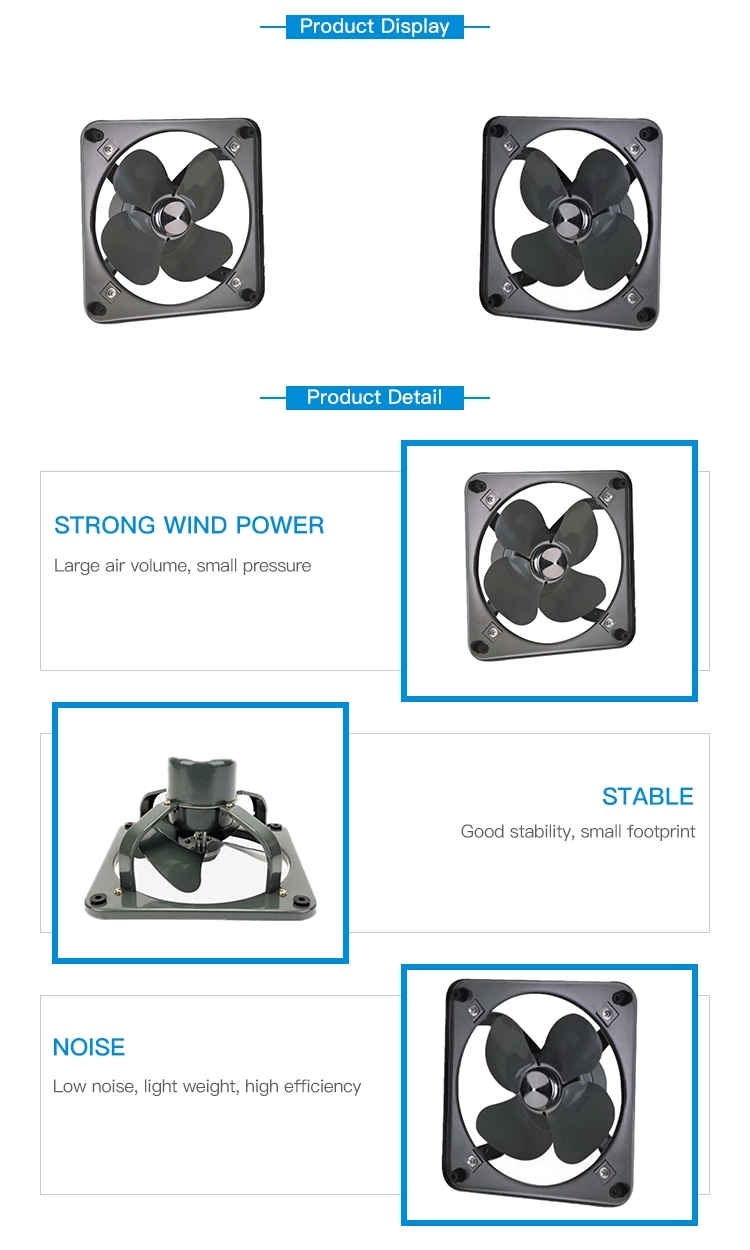

It has features as low noise, high efficiency, energy saving, high plow rates, etc.
It can be used for oil smoke exhausting for kitchens, dining rooms, restaurants, etc.
Quick Details
Type:Axial Flow Fan
Electric Current Type:AC
Mounting:Wall Fan
Blade Material:metal
Place of Origin:Zhejiang, China
Brand Name:DEJIU
Voltage:220V/380V
Certification:CCC, CE
Product name:FA series unique axial flow industrial powerful exhaust fan
Color:BLACK ,GREY or optional
Frequency:50HZ
Motor coil:100% copper
Size:24 inch
Motor:Shaded-pole
After-sales Service Provided:Overseas third-party support available
Supply Ability
Supply Ability: 5000 Set/Sets per Month for FA series unique axial flow industrial powerful exhaust fan
Lead Time : 25-40 days after order confirmed
Port Ningbo/Shanghai
Packaging & Delivery
Packaging Details 1pc in a carton box for FA series unique axial flow industrial powerful exhaust fan
Model Size
(Mm)Voltage
(V)
Phase
Frequency
(Hz)
Power
(W)Speed
(r/min)Air-volume
(m³/min)Noise
(dB(A)FA-20 200 220 1 50 35 1400 12 48 FA-25 250 220 1 50 40 1400 14 50 FA-30 300 220 1 50 45 1400 18 55 FA-35 350 220 1 50 75 1400 38 61 FA-40 400 220/380 1/3 50 150 1400 48 78 FA-50 500 220/380 1/3 50 350 1400 65 78 FA-60 600 220/380 1/3 50 600 1400 145 83
